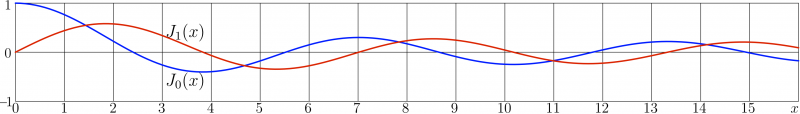

Plot of the BesselJ0 and BesselJ1 versus real argument.

Generator of curves

Files besselj0.cin, besselj1.cin, ado.cin, conto.cin should be loaded in the working directory in order to compile the C++ code below:

#include <stdlib.h>
#define DB double
#define DO(x,y) for(x=0;x<y;x++)
using namespace std;
#include <complex>
typedef complex<double> z_type;
#define Re(x) x.real()
#define Im(x) x.imag()
#define I z_type(0.,1.)
#include "conto.cin"
#include "besselj0.cin"
#include "besselj1.cin"

main(){ int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
FILE *o;o=fopen("besselj0j1plot.eps","w");ado(o,162,22);
fprintf(o,"1 11 translate\n 10 10 scale\n");
fprintf(o,"2 setlinecap\n");
DO(m,17) {M(m,-1)L(m,1)}
M(0,-1)L(16,-1)
M(0,0)L(16,0)
M(0,1)L(16,1)
fprintf(o,"0 0 0 RGB .01 W S\n");
fprintf(o,"1 setlinejoin 1 setlinecap .03 W\n");
M(0,1) DO(m,161){ x=.1*m; y=Re(BesselJ0(x)); L(x,y) } fprintf(o,"0 0 1 RGB S\n");
M(0,0) DO(m,161){ x=.1*m; y=Re(BesselJ1(x)); L(x,y) } fprintf(o,"1 0 0 RGB S\n");
fprintf(o,"showpage\n%c%cTrailer",'%','%'); fclose(o);
    system("epstopdf besselj0j1plot.eps");
    system(    "open besselj0j1plot.pdf");
    getchar(); system("killall Preview");//for mac
}

Latex generator of labels

\documentclass[12pt]{article} %<br> \paperheight 232px %%<br> \paperwidth 1634px %%<br> \textwidth 1290px %%<br> \textheight 1200px %%<br> \topmargin -100px %%<br> \oddsidemargin -80px %%<br> \usepackage{graphics} %%<br> \usepackage{rotating} %%<br> \usepackage{color}%%<br> \newcommand \sx {\scalebox} %%<br> \newcommand \rot {\begin{rotate}} %<br> \newcommand \ero {\end{rotate}} %<br> \newcommand \ing {\includegraphics} %<br> \newcommand \rmi {\mathrm{i}} %<br> \begin{document} %<br> \begin{picture}(1840,220) %<br> \put(12,12){\sx{10}{\includegraphics{besselj0j1plot}}} %<br> \put( 0,210){\sx{2.4}{$1$}} %<br> \put( 0,112){\sx{2.4}{$0$}} %<br> \put(-15,12){\sx{2.4}{$-\!1$}} %<br> \put( 15,-1){\sx{2.5}{$0$}} %<br> \put(115,-1){\sx{2.5}{$1$}} %<br> \put(215,-1){\sx{2.5}{$2$}} %<br> \put(315,-1){\sx{2.5}{$3$}} %<br> \put(415,-1){\sx{2.5}{$4$}} %<br> \put(515,-1){\sx{2.5}{$5$}} %<br> \put(615,-1){\sx{2.5}{$6$}} %<br> \put(715,-1){\sx{2.5}{$7$}} %<br> \put(815,-1){\sx{2.5}{$8$}} %<br> \put(915,-1){\sx{2.5}{$9$}} %<br> \put(1010,-1){\sx{2.5}{$10$}} %<br> \put(1110,-1){\sx{2.5}{$11$}} %<br> \put(1210,-1){\sx{2.5}{$12$}} %<br> \put(1310,-1){\sx{2.5}{$13$}} %<br> \put(1410,-1){\sx{2.5}{$14$}} %<br> \put(1510,-1){\sx{2.5}{$15$}} %<br> \put(1612,-1){\sx{2.5}{$x$}} %<br> \put(330,154){\sx{3}{$J_1(x)$}} %<br> \put(330,54){\sx{3}{$J_0(x)$}} %<br> \end{picture} %<br> \end{document} %
