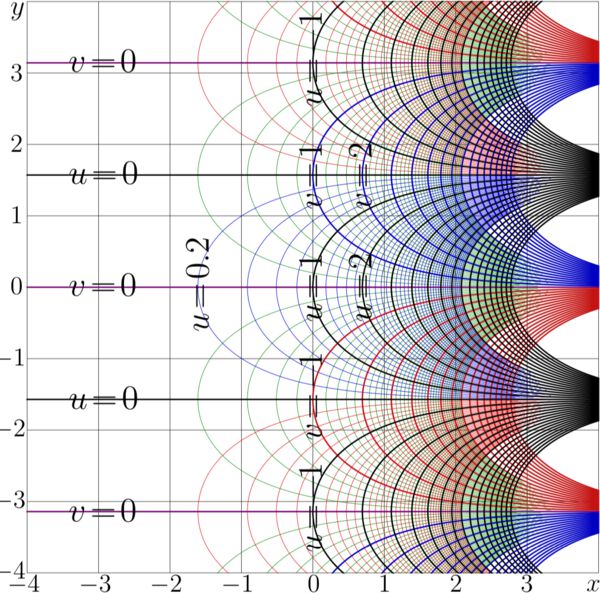

Complex map of exp: \[u+\mathrm iv=\exp(x\!+\!\mathrm iy)\]

This map appears as figure 14.2 at page 177 of book «Superfunctions»^[1].

The map is included in the Book in order to compare it to maps of other related functions; in particular, those of
Logarithm (inverse function of exponential) \(\ln=\exp^{-1}\)
tetration (SuperExponential) tet as solution of transfer equation \(~ \mathrm{tet}(z\!+\!1)=\exp(\mathrm{tet}(z))\) ,
ArcTetration (AbelExponential) \( \mathrm{ate}=\mathrm{tet}^{-1} ~\) and
non-integer iterates of exponential, \[ \exp^n(z)=\mathrm{tet}\big(n+\mathrm{ate}(z)\big) \] Number \(n\) of iterate in this expression has no need to be integer; it can be real or even a complex number.

C++ generator of map

/* Files ado.cin and conto.cin should be loaded in order to compile the code below.*/

 #include <math.h>
 #include <stdio.h>
 #include <stdlib.h>
 #define DB double
 #define DO(x,y) for(x=0;x<y;x++)
 using namespace std;
 #include<complex>
 typedef complex<double> z_type;
 #define Re(x) x.real()
 #define Im(x) x.imag()
 #define I z_type(0.,1.)
 #include "conto.cin"
//#include "fsexp.cin"
//#include "fslog.cin"
 main(){ int j,k,m,n; DB x,y, p,q, t; z_type z,c,d, cu,cd;
 int M=401,M1=M+1;
 int N=401,N1=N+1;
 DB X[M1],Y[N1];
 DB *g, *f, *w; // w is working array.
 g=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
 f=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
 w=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
 char v[M1*N1]; // v is working array
 FILE *o;o=fopen("ExpMap.eps","w");  ado(o,802,802);
 fprintf(o,"401 401 translate\n 100 100 scale\n");
 fprintf(o,"1 setlinejoin 2 setlinecap\n");
 DO(m,M1) X[m]=-4.+.02*(m-.5);
 DO(n,N1) Y[n]=-4.+.02*(n-.5);
// for(n=0;n<N1;n++) Y[n]=sinh((2./200.)*(n-200.5));
 for(m=-4;m<5;m++) {M(m,-4)L(m,4)}
 for(n=-4;n<5;n++) {M(  -4,n)L(4,n)} fprintf(o,".006 W 0 0 0 RGB S\n");
 //fprintf(o,"/adobe-Roman findfont .6 scalefont setfont\n");
 DO(m,M1)DO(n,N1){      g[m*N1+n]=999;
                        f[m*N1+n]=999;}
 DB b=sqrt(2);
 DO(m,M1){x=X[m]; printf("x=%6.3f\n",x);
 DO(n,N1){y=Y[n]; z=z_type(x,y); //if(abs(z+2.)>.019)
       {
 	c=exp(z);
 // 	c=FSEXP(z);
 //	c=FSLOG(z);
         p=Re(c); q=Im(c);
        // if(p>-12 && p<12 && fabs(q)>1.e-12)
 	g[m*N1+n]=p;
        // if(q>-12 && q<12 && fabs(q)>1.e-12)
 	f[m*N1+n]=q;
       }
        }}
 fprintf(o,"1 setlinejoin 1 setlinecap\n");
 p=2.;q=.3;
 for(m=-8;m<8;m++)for(n=2;n<10;n+=2)conto(o,f,w,v,X,Y,M,N,(m+.1*n),-q,q);fprintf(o,".007 W 0 .6 0 RGB S\n");
 for(m=0;m<8;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);fprintf(o,".007 W .9 0 0 RGB S\n");
 for(m=0;m<8;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);fprintf(o,".007 W 0 0 .9 RGB S\n");
 for(m= 1;m<17;m++) conto(o,f,w,v,X,Y,M,N, (0.-m),-p,p);fprintf(o,".02 W .8 0 0 RGB S\n");
 for(m= 1;m<17;m++) conto(o,f,w,v,X,Y,M,N, (0.+m),-p,p);fprintf(o,".02 W 0 0 .8 RGB S\n");
                conto(o,f,w,v,X,Y,M,N, (0.  ),-p,p); fprintf(o,".02 W .5 0 .5 RGB S\n");
 for(m=-16;m<17;m++)conto(o,g,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".02 W 0 0 0 RGB S\n");
 //
 /*
 M(-2,0)L(-4,0)fprintf(o,"0 setlinecap .03 W 1 1 1 RGB S\n");
 for(n=0;n<11;n++){ M(-2-.2*(n+.2),0) L(-2-.2*(n+.45),0) } fprintf(o,".04 W 1 .5 0 RGB S\n");
 for(n=0;n<21;n++){ M(-2-.2*(n+.7),0) L(-2-.2*(n+.95),0) } fprintf(o,".04 W 0 .5 1 RGB S\n");
 */
 //#include "plofu.cin"
 fprintf(o,"0 setlinejoin 0 setlinecap\n");
 fprintf(o,"showpage\n");
 fprintf(o,"%c%cTrailer\n",'%','%');
 fclose(o);
 free(f);
 free(g);
 free(w);
       system("epstopdf ExpMap.eps");
       system(    "open ExpMap.pdf"); //for macintosh
//       getchar(); system("killall Preview"); // For macintosh
 }
