(Importing image file)


Line 1: Line 1:
  +
[[Complex map]] of function [[ArqNem]] with parameter $q\!=\!1$:
−
Importing image file

  +
  +
$u\!+\!\mathrm i v = \mathrm{ArqNem}_1(x\!+\!\mathrm i y)$.
  +
  +
Additional grid lines mark the branch point of function $\mathrm{arqNem}_q~~$;
  +
  +
$x_0 +\mathrm i y_0 = \mathrm{Nem}_1(z_0)$
  +
  +
where $z_0$ is solution of equation $\mathrm{Nem}_1^{~\prime} (z_0)=0$
  +
  +
==References==
  +
<references/>
  +
  +
==[[C++]] generator of map==
  +
  +
[[ado.cin]], [[conto.cin]], [[nembran.cin]], [[arqnem.cin]] should be loaded in order to compile the code below:
  +
  +
<poem><nomathjax><nowiki>
  +
#include <math.h>
  +
#include <stdio.h>
  +
#include <stdlib.h>
  +
#define DB double
  +
#define DO(x,y) for(x=0;x<y;x++)
  +
//using namespace std;
  +
#include <complex>
  +
typedef std::complex<double> z_type;
  +
#define Re(x) x.real()
  +
#define Im(x) x.imag()
  +
#define I z_type(0.,1.)
  +
#include "conto.cin"
  +
  +
DB Q=1.;
  +
  +
z_type nem(z_type z){ return z*(1.+z*z*(1.+z*Q)); }
  +
z_type nem1(z_type z){ return 1.+z*z*(3.+z*(4.*Q)); } // WARNING: Q is global!
  +
  +
#include"nembran.cin"
  +
z_type NemZo=nembra(Q);
  +
z_type ANemZo=nem(NemZo);
  +
DB tr=Re(ANemZo);
  +
DB ti=Im(ANemZo);
  +
  +
#include "arqnem.cin"
  +
  +
/*
  +
z_type arnemU(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
  +
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
  +
z_type R=-I*sqrt(-r);
  +
z_type s=27.*a + 3.*R; z_type S=pow(s,1./3.);
  +
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
  +
z_type h=0.25/q2 + B;
  +
z_type H=I*sqrt(-h);
  +
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
  +
z_type G=I*sqrt(-g);
  +
return - 0.25/q - 0.5*H + 0.5*G ;}
  +
  +
z_type arnemD(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
  +
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
  +
z_type R=I*sqrt(-r);
  +
z_type s=27.*a + 3.*R; z_type S=pow(s,1./3.);
  +
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
  +
z_type h=0.25/q2 + B;
  +
z_type H=-I*sqrt(-h);
  +
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
  +
z_type G=-I*sqrt(-g);
  +
return - 0.25/q - 0.5*H + 0.5*G ;}
  +
  +
z_type arnemR(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
  +
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
  +
z_type R=sqrt(r); z_type s=27.*a + 3.*R;
  +
z_type S=pow(s,1./3.);
  +
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
  +
z_type h=0.25/q2 + B;
  +
z_type H=sqrt(h);
  +
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
  +
z_type G=sqrt(g);
  +
return - 0.25/q - 0.5*H + 0.5*G ;}
  +
  +
z_type arnemL(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
  +
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
  +
z_type R=-sqrt(r);
  +
z_type s=27.*a + 3.*R; z_type S=pow(s,1./3.);
  +
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
  +
z_type h=0.25/q2 + B;
  +
z_type H=sqrt(h);
  +
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
  +
z_type G=sqrt(g);
  +
return - 0.25/q - 0.5*H + 0.5*G ;}
  +
  +
z_type arqnem(z_type z){ DB x,y; x=Re(z);y=Im(z);
  +
if( y>ti || (x<0 && y>=0)) return arnemU(z);
  +
//if(y<0) return conj(arnemU(conj(z)));
  +
if(y<-ti || (x<0 && y<=0)) return arnemD(z);
  +
if(x*ti>fabs(y)*tr) return arnemR(z);
  +
return arnemL(z);
  +
}
  +
*/
  +
  +
int main(){ int Max; int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
  +
// DB rr,ti;
  +
int M=2001,M1=M+1;
  +
int N=1001,N1=N+1;
  +
DB X[M1],Y[N1]; DB *g, *f, *w; // w is working array.
  +
g=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
  +
f=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
  +
w=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
  +
char v[M1*N1]; // v is working array
  +
//DB X[M1],Y[N1], g[M1*N1],f[M1*N1], w[M1*N1]; // w is working array.
  +
//char v[M1*N1]; // v is working array
  +
FILE *o;o=fopen("arqnem10z.eps","w");ado(o,2020,2020);
  +
fprintf(o,"1010 1010 translate\n 1000 1000 scale 2 setlinecap\n");
  +
DO(m,M1) X[m]=-1.+.001*(m-.5);
  +
DO(n,N1) Y[n]=-1.+.002*(n-.5);
  +
for(m=-10;m<11;m+=5){ M(.1*m,-1)L(.1*m,1)}
  +
for(n=-10;n<11;n+=5){ M(-1,.1*n)L(1,.1*n)}
  +
fprintf(o,".003 W 0 0 0 RGB 2 setlinecap S\n");
  +
  +
M(tr, -2) L(tr, 2)
  +
M(-2, ti) L(2, ti)
  +
M(-2,-ti) L(2,-ti)
  +
fprintf(o,".002 W 0 0 0 RGB S\n");
  +
  +
M(-2,0) L(0,0) M(tr,ti)L(0,0)L(tr,-ti)
  +
fprintf(o,".004 W 1 1 0 RGB 0 setlinecap S\n");
  +
printf("ti, tr= %9.5lf %9.5lf\n",tr,ti);
  +
  +
DO(m,M1)DO(n,N1){g[m*N1+n]=9999999; f[m*N1+n]=9999999;}
  +
DO(m,M1){x=X[m]; if(m/10*10==m) printf("run at x=%6.3f\n",x);
  +
DO(n,N1){y=Y[n]; z=z_type(x,y);
  +
//c=sunem(z);
  +
//c=aun(z);
  +
c=arqnem(z);
  +
//c=arnemD(z);
  +
//c=nem(c);
  +
//p=abs(c-z)/abs(c+z); p=-log(p)/log(10.);
  +
p=Re(c); q=Im(c);
  +
//if(p>-85 && p<85) g[m*N1+n]=p;
  +
if(p>-1001 && p<1001 &&
  +
q >-1001 && q<1001 ) { g[m*N1+n]=p; f[m*N1+n]=q; }
  +
}}
  +
  +
M(-2,0) L(0,0) M(tr,ti)L(0,0)L(tr,-ti)
  +
fprintf(o,".002 W 1 1 0 RGB 0 setlinecap S\n");
  +
  +
fprintf(o,"1 setlinejoin 1 setlinecap\n");
  +
p=20.;q=.5;
  +
//#include"plofu.cin"
  +
//p=2;q=1;
  +
  +
for(m=-5;m<5;m++)for(n=1;n<10;n+=1)conto(o,f,w,v,X,Y,M,N, (m+.1*n),-q,q);
  +
fprintf(o,".006 W 0 .6 0 RGB S\n");
  +
for(m=0;m<5;m++) for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);
  +
fprintf(o,".006 W .9 0 0 RGB S\n");
  +
for(m=0;m<5;m++) for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);
  +
fprintf(o,".006 W 0 0 .9 RGB S\n");
  +
  +
for(m= 1;m<11;m++) conto(o,f,w,v,X,Y,M,N,(0.-m),-p,p);fprintf(o,".01 W .8 0 0 RGB S\n");
  +
for(m= 1;m<11;m++) conto(o,f,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".01 W 0 0 .8 RGB S\n");
  +
conto(o,f,w,v,X,Y,M,N,(0. ),-p,p);fprintf(o,".01 W .5 0 .5 RGB S\n");
  +
for(m=-10;m<11;m++)conto(o,g,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".01 W 0 0 0 RGB S\n");
  +
  +
/*
  +
// conto(o,g,w,v,X,Y,M,N,15.5,-p,p);fprintf(o,".02 W .3 0 .3 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,15.,-p,p);fprintf(o,".004 W 0 0 1 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,14.,-p,p);fprintf(o,".002 W 0 1 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,13.,-p,p);fprintf(o,".002 W 1 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,12.,-p,p);fprintf(o,".004 W 0 0 .7 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,11.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,10.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,9.,-p,p);fprintf(o,".004 W 0 .6 .8 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,8.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,7.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,6.,-p,p);fprintf(o,".004 W 0 .6 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,5.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,4.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,3.,-p,p);fprintf(o,".004 W 1 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,2.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
  +
conto(o,g,w,v,X,Y,M,N,1.,-p,p);fprintf(o,".005 W .5 0 0 RGB S\n");
  +
*/
  +
  +
M(-2,0) L(0,0) M(tr,ti)L(0,0)L(tr,-ti)
  +
fprintf(o,".004 W 1 1 0 RGB 0 setlinecap S\n");
  +
  +
fprintf(o,"showpage\n%cTrailer",'%'); fclose(o);
  +
system("epstopdf arqnem10z.eps");
  +
system( "open arqnem10z.pdf"); //mac
  +
  +
//getchar(); system("killall Preview");// mac
  +
  +
return 0;
  +
}
  +
  +
</nowiki></nomathjax></poem>
  +
  +
==[[Latex]] generator of labels==
  +
  +
<poem><nomathjax><nowiki>
  +
\documentclass[12pt]{article}
  +
\usepackage{graphics}
  +
\paperwidth 2020pt
  +
\paperheight 2020pt
  +
\usepackage{geometry}
  +
\usepackage{rotating}
  +
\textwidth 2260pt
  +
\textheight 2260pt
  +
\topmargin -97pt
  +
\oddsidemargin -84pt
  +
\parindent 0pt
  +
\pagestyle{empty}
  +
\newcommand \ing {\includegraphics}
  +
\newcommand \sx {\scalebox}
  +
\newcommand \rot {\begin{rotate}}
  +
\newcommand \ero {\end{rotate}}
  +
\begin{document}
  +
\begin{picture}(2020,2020)
  +
%\put(24,20){\ing{35z}}
  +
\put(10,10){\ing{arqnem10z}}
  +
\put(226,1000){\sx{8}{\rot{0.} \bf cut \ero}}
  +
\put(1044,1044){\sx{8}{\rot{73} \bf cut \ero}}
  +
  +
\put(940,1980){\sx{8}{$y$}}
  +
\put(900,1500){\sx{8}{$0.5$}}
  +
\put(900,1354){\sx{8}{$y_0$}}
  +
\put(930,1000){\sx{8}{$0$}}
  +
\put(860,664){\sx{8}{$-y_0$}}
  +
\put(830, 492){\sx{8}{$-0.5$}}
  +
\put(400, 942){\sx{8}{$-0.5$}}
  +
\put(1000, 942){\sx{8}{$0$}}
  +
\put(1064, 942){\sx{8}{$x_0$}}
  +
\put(1464, 942){\sx{8}{$0.5$}}
  +
\put(1980, 942){\sx{8}{$x$}}
  +
%
  +
\put(700,1820){\sx{8}{\rot{-70} $v\!=\!0.6$\ero}}
  +
\put(470,1540){\sx{8}{\rot{-46} $v\!=\!0.7$\ero}}
  +
\put(240,1220){\sx{8}{\rot{-31} $v\!=\!0.8$\ero}}
  +
%
  +
\put(1048,1670){\sx{8}{\rot{90} $v\!=\!0.5$\ero}}
  +
\put(1244,1644){\sx{8}{\rot{66} $v\!=\!0.4$\ero}}
  +
\put(1420,1544){\sx{8}{\rot{49} $v\!=\!0.3$\ero}}
  +
\put(1560,1400){\sx{8}{\rot{32} $v\!=\!0.2$\ero}}
  +
\put(1620,1206){\sx{8}{\rot{14} $v\!=\!0.1$\ero}}
  +
\put(1620,1000){\sx{8}{\rot{0} $v\!=\!0$\ero}}
  +
\put(1600, 798){\sx{8}{\rot{-16} $v\!=\!-0.1$\ero}}
  +
%
  +
\put(1210, 740){\sx{8}{\rot{77} $u\!=\!0.2$\ero}}
  +
\put(1280, 667){\sx{8}{\rot{65} $u\!=\!0.3$\ero}}
  +
\put(1380, 580){\sx{8}{\rot{57} $u\!=\!0.4$\ero}}
  +
\put(1500, 430){\sx{8}{\rot{51} $u\!=\!0.5$\ero}}
  +
\put(1654, 220){\sx{8}{\rot{48} $u\!=\!0.6$\ero}}
  +
  +
\end{picture}
  +
\end{document}
  +
</nowiki></nomathjax></poem>
  +
  +
[[Category:Abel function]]
  +
[[Category:ArqNem]]
  +
[[Category:Book]]
  +
[[Category:BookMap]]
  +
[[Category:C++]]
  +
[[Category:Complex map]]
  +
[[Category:Latex]]
  +
[[Category:Nemtsov function]]
  +
[[Category:Superfunction]]

Latest revision as of 08:30, 1 December 2018

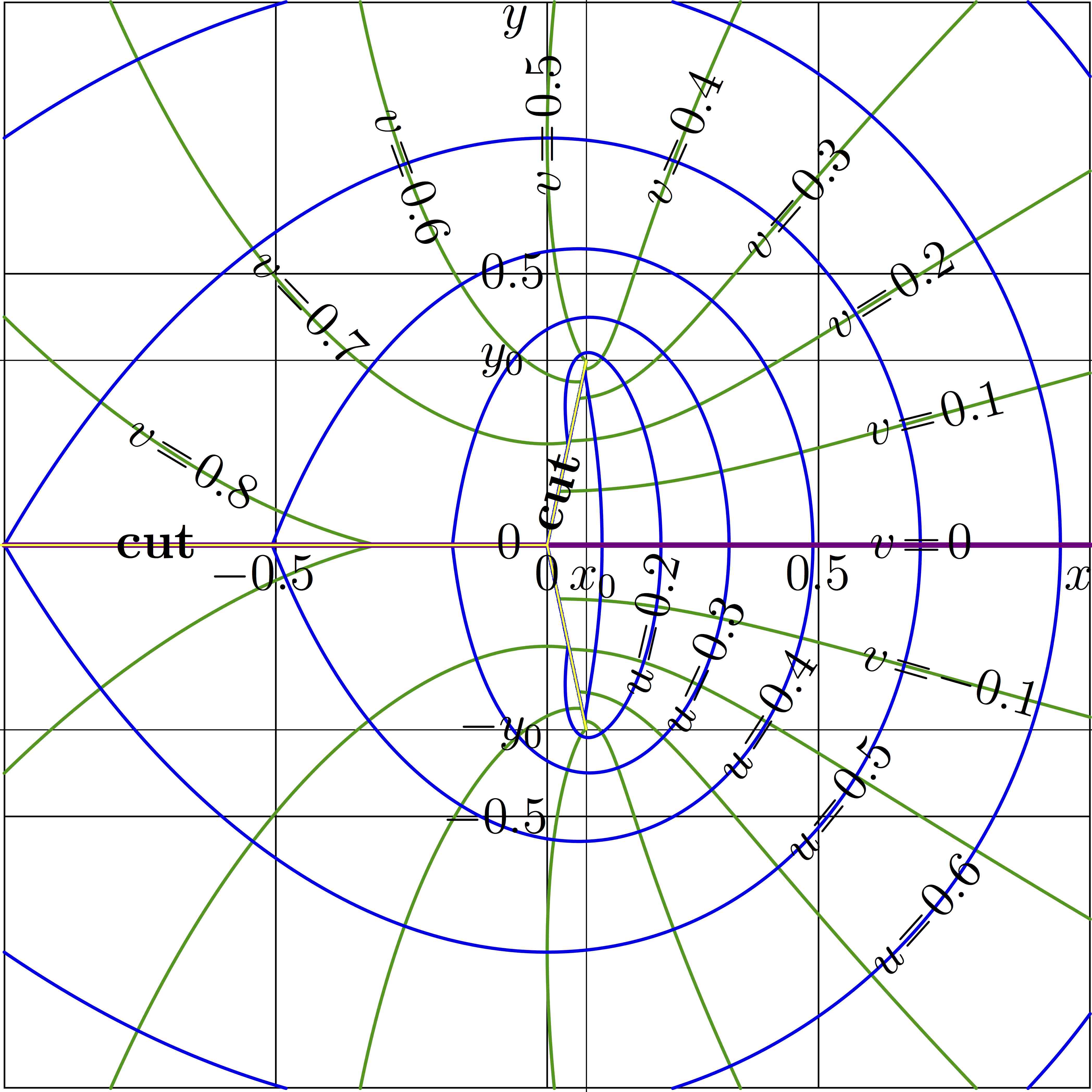

Complex map of function ArqNem with parameter $q\!=\!1$:

$u\!+\!\mathrm i v = \mathrm{ArqNem}_1(x\!+\!\mathrm i y)$.

Additional grid lines mark the branch point of function $\mathrm{arqNem}_q~~$;

$x_0 +\mathrm i y_0 = \mathrm{Nem}_1(z_0)$

where $z_0$ is solution of equation $\mathrm{Nem}_1^{~\prime} (z_0)=0$

References


C++ generator of map

ado.cin, conto.cin, nembran.cin, arqnem.cin should be loaded in order to compile the code below:


#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#define DB double
#define DO(x,y) for(x=0;x<y;x++)
//using namespace std;
#include <complex>
typedef std::complex<double> z_type;
#define Re(x) x.real()
#define Im(x) x.imag()
#define I z_type(0.,1.)
#include "conto.cin"

DB Q=1.;

z_type nem(z_type z){ return z*(1.+z*z*(1.+z*Q)); }
z_type nem1(z_type z){ return 1.+z*z*(3.+z*(4.*Q)); } // WARNING: Q is global!

#include"nembran.cin"
z_type NemZo=nembra(Q);
z_type ANemZo=nem(NemZo);
DB tr=Re(ANemZo);
DB ti=Im(ANemZo);

#include "arqnem.cin"

/*
z_type arnemU(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
z_type R=-I*sqrt(-r);
z_type s=27.*a + 3.*R; z_type S=pow(s,1./3.);
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
z_type h=0.25/q2 + B;
z_type H=I*sqrt(-h);
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
z_type G=I*sqrt(-g);
return - 0.25/q - 0.5*H + 0.5*G ;}

z_type arnemD(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
z_type R=I*sqrt(-r);
z_type s=27.*a + 3.*R; z_type S=pow(s,1./3.);
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
z_type h=0.25/q2 + B;
z_type H=-I*sqrt(-h);
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
z_type G=-I*sqrt(-g);
return - 0.25/q - 0.5*H + 0.5*G ;}

z_type arnemR(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
z_type R=sqrt(r); z_type s=27.*a + 3.*R;
z_type S=pow(s,1./3.);
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
z_type h=0.25/q2 + B;
z_type H=sqrt(h);
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
z_type G=sqrt(g);
return - 0.25/q - 0.5*H + 0.5*G ;}

z_type arnemL(z_type z){ DB q=Q; DB q2=q*q; DB q3=q2*q;
z_type a=q-z; z_type b=1.+4.*q*z; z_type r=81.*(a*a)+12.*(b*b*b);
z_type R=-sqrt(r);
z_type s=27.*a + 3.*R; z_type S=pow(s,1./3.);
z_type B=(0.26456684199469993*S)/q - (1.2599210498948732*b)/(q*S);
z_type h=0.25/q2 + B;
z_type H=sqrt(h);
z_type g=0.5/q2 - B + (.25+2.*q2)/(q3*H);
z_type G=sqrt(g);
return - 0.25/q - 0.5*H + 0.5*G ;}

z_type arqnem(z_type z){ DB x,y; x=Re(z);y=Im(z);
if( y>ti || (x<0 && y>=0)) return arnemU(z);
//if(y<0) return conj(arnemU(conj(z)));
if(y<-ti || (x<0 && y<=0)) return arnemD(z);
if(x*ti>fabs(y)*tr) return arnemR(z);
return arnemL(z);
}
*/

int main(){ int Max; int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
// DB rr,ti;
 int M=2001,M1=M+1;
 int N=1001,N1=N+1;
DB X[M1],Y[N1]; DB *g, *f, *w; // w is working array.
g=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
f=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
w=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
char v[M1*N1]; // v is working array
//DB X[M1],Y[N1], g[M1*N1],f[M1*N1], w[M1*N1]; // w is working array.
//char v[M1*N1]; // v is working array
FILE *o;o=fopen("arqnem10z.eps","w");ado(o,2020,2020);
fprintf(o,"1010 1010 translate\n 1000 1000 scale 2 setlinecap\n");
DO(m,M1) X[m]=-1.+.001*(m-.5);
DO(n,N1) Y[n]=-1.+.002*(n-.5);
for(m=-10;m<11;m+=5){ M(.1*m,-1)L(.1*m,1)}
for(n=-10;n<11;n+=5){ M(-1,.1*n)L(1,.1*n)}
fprintf(o,".003 W 0 0 0 RGB 2 setlinecap S\n");

M(tr, -2) L(tr, 2)
M(-2, ti) L(2, ti)
M(-2,-ti) L(2,-ti)
fprintf(o,".002 W 0 0 0 RGB S\n");

M(-2,0) L(0,0) M(tr,ti)L(0,0)L(tr,-ti)
fprintf(o,".004 W 1 1 0 RGB 0 setlinecap S\n");
printf("ti, tr= %9.5lf %9.5lf\n",tr,ti);

DO(m,M1)DO(n,N1){g[m*N1+n]=9999999; f[m*N1+n]=9999999;}
DO(m,M1){x=X[m]; if(m/10*10==m) printf("run at x=%6.3f\n",x);
DO(n,N1){y=Y[n]; z=z_type(x,y);
//c=sunem(z);
//c=aun(z);
c=arqnem(z);
//c=arnemD(z);
//c=nem(c);
//p=abs(c-z)/abs(c+z); p=-log(p)/log(10.);
        p=Re(c); q=Im(c);
//if(p>-85 && p<85) g[m*N1+n]=p;
        if(p>-1001 && p<1001 &&
        q >-1001 && q<1001 ) { g[m*N1+n]=p; f[m*N1+n]=q; }
        }}

M(-2,0) L(0,0) M(tr,ti)L(0,0)L(tr,-ti)
fprintf(o,".002 W 1 1 0 RGB 0 setlinecap S\n");

fprintf(o,"1 setlinejoin 1 setlinecap\n");
p=20.;q=.5;
//#include"plofu.cin"
//p=2;q=1;

for(m=-5;m<5;m++)for(n=1;n<10;n+=1)conto(o,f,w,v,X,Y,M,N, (m+.1*n),-q,q);
                                                fprintf(o,".006 W 0 .6 0 RGB S\n");
for(m=0;m<5;m++) for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);
                                                fprintf(o,".006 W .9 0 0 RGB S\n");
for(m=0;m<5;m++) for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);
                                                fprintf(o,".006 W 0 0 .9 RGB S\n");

for(m= 1;m<11;m++) conto(o,f,w,v,X,Y,M,N,(0.-m),-p,p);fprintf(o,".01 W .8 0 0 RGB S\n");
for(m= 1;m<11;m++) conto(o,f,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".01 W 0 0 .8 RGB S\n");
                   conto(o,f,w,v,X,Y,M,N,(0. ),-p,p);fprintf(o,".01 W .5 0 .5 RGB S\n");
for(m=-10;m<11;m++)conto(o,g,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".01 W 0 0 0 RGB S\n");

/*
// conto(o,g,w,v,X,Y,M,N,15.5,-p,p);fprintf(o,".02 W .3 0 .3 RGB S\n");
conto(o,g,w,v,X,Y,M,N,15.,-p,p);fprintf(o,".004 W 0 0 1 RGB S\n");
conto(o,g,w,v,X,Y,M,N,14.,-p,p);fprintf(o,".002 W 0 1 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,13.,-p,p);fprintf(o,".002 W 1 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,12.,-p,p);fprintf(o,".004 W 0 0 .7 RGB S\n");
conto(o,g,w,v,X,Y,M,N,11.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,10.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,9.,-p,p);fprintf(o,".004 W 0 .6 .8 RGB S\n");
conto(o,g,w,v,X,Y,M,N,8.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,7.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,6.,-p,p);fprintf(o,".004 W 0 .6 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,5.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,4.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,3.,-p,p);fprintf(o,".004 W 1 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,2.,-p,p);fprintf(o,".002 W 0 0 0 RGB S\n");
conto(o,g,w,v,X,Y,M,N,1.,-p,p);fprintf(o,".005 W .5 0 0 RGB S\n");
*/

M(-2,0) L(0,0) M(tr,ti)L(0,0)L(tr,-ti)
fprintf(o,".004 W 1 1 0 RGB 0 setlinecap S\n");

fprintf(o,"showpage\n%cTrailer",'%'); fclose(o);
        system("epstopdf arqnem10z.eps");
        system( "open arqnem10z.pdf"); //mac

//getchar(); system("killall Preview");// mac

return 0;
}

Latex generator of labels


 \documentclass[12pt]{article}
 \usepackage{graphics}
 \paperwidth 2020pt
 \paperheight 2020pt
 \usepackage{geometry}
 \usepackage{rotating}
 \textwidth 2260pt
 \textheight 2260pt
 \topmargin -97pt
 \oddsidemargin -84pt
 \parindent 0pt
 \pagestyle{empty}
\newcommand \ing {\includegraphics}
\newcommand \sx {\scalebox}
\newcommand \rot {\begin{rotate}}
\newcommand \ero {\end{rotate}}
\begin{document}
\begin{picture}(2020,2020)
%\put(24,20){\ing{35z}}
\put(10,10){\ing{arqnem10z}}
\put(226,1000){\sx{8}{\rot{0.} \bf cut \ero}}
\put(1044,1044){\sx{8}{\rot{73} \bf cut \ero}}

\put(940,1980){\sx{8}{$y$}}
\put(900,1500){\sx{8}{$0.5$}}
\put(900,1354){\sx{8}{$y_0$}}
\put(930,1000){\sx{8}{$0$}}
\put(860,664){\sx{8}{$-y_0$}}
\put(830, 492){\sx{8}{$-0.5$}}
\put(400, 942){\sx{8}{$-0.5$}}
\put(1000, 942){\sx{8}{$0$}}
\put(1064, 942){\sx{8}{$x_0$}}
\put(1464, 942){\sx{8}{$0.5$}}
\put(1980, 942){\sx{8}{$x$}}
%
\put(700,1820){\sx{8}{\rot{-70} $v\!=\!0.6$\ero}}
\put(470,1540){\sx{8}{\rot{-46} $v\!=\!0.7$\ero}}
\put(240,1220){\sx{8}{\rot{-31} $v\!=\!0.8$\ero}}
%
\put(1048,1670){\sx{8}{\rot{90} $v\!=\!0.5$\ero}}
\put(1244,1644){\sx{8}{\rot{66} $v\!=\!0.4$\ero}}
\put(1420,1544){\sx{8}{\rot{49} $v\!=\!0.3$\ero}}
\put(1560,1400){\sx{8}{\rot{32} $v\!=\!0.2$\ero}}
\put(1620,1206){\sx{8}{\rot{14} $v\!=\!0.1$\ero}}
\put(1620,1000){\sx{8}{\rot{0} $v\!=\!0$\ero}}
\put(1600, 798){\sx{8}{\rot{-16} $v\!=\!-0.1$\ero}}
%
\put(1210, 740){\sx{8}{\rot{77} $u\!=\!0.2$\ero}}
\put(1280, 667){\sx{8}{\rot{65} $u\!=\!0.3$\ero}}
\put(1380, 580){\sx{8}{\rot{57} $u\!=\!0.4$\ero}}
\put(1500, 430){\sx{8}{\rot{51} $u\!=\!0.5$\ero}}
\put(1654, 220){\sx{8}{\rot{48} $u\!=\!0.6$\ero}}

\end{picture}
\end{document}

File history

Click on a date/time to view the file as it appeared at that time.

Date/TimeThumbnailDimensionsUserComment
current06:10, 1 December 2018Thumbnail for version as of 06:10, 1 December 20184,192 × 4,192 (686 KB)Maintenance script (talk | contribs)Importing image file

You cannot overwrite this file.

The following page uses this file:

Metadata

This file contains additional information, probably added from the digital camera or scanner used to create or digitize it.

If the file has been modified from its original state, some details may not fully reflect the modified file.

Retrieved from "https://mizugadro.mydns.jp/t/index.php?title=File:Arqnem10zt.jpg&oldid=18242"
