(Importing image file)


Line 1: Line 1:
  +
[Explicit plot]] of function [[SuNem]] for vationus values of parameter.
−
Importing image file

  +
  +
$y=\mathrm{SuNem}_q(x)~ ~ $ versus $x$ for
  +
  +
$q\!=\!0$, (black)
  +
  +
$q\!=\!0.5$, (pink)
  +
  +
$q\!=\!1$, (red)
  +
  +
$q\!=\!2$, (green)
  +
  +
$q\!=\!3$, (blue)
  +
  +
  +
==Description==
  +
  +
==References==
  +
<references/>
  +
  +
==[[C++]] generator of curves==
  +
  +
Files [[ado.cin]], [[conto.cin]], [[sune.cin]], [[sunema.txt]] should be loaded in order to compile the [[C++]] code below.
  +
<poem><nomathjax><nowiki>
  +
#include <math.h>
  +
#include <stdio.h>
  +
#include <stdlib.h>
  +
#define DB double
  +
#define DO(x,y) for(x=0;x<y;x++)
  +
//using namespace std;
  +
#include <complex>
  +
typedef std::complex<double> z_type;
  +
#define Re(x) x.real()
  +
#define Im(x) x.imag()
  +
#define I z_type(0.,1.)
  +
//#include "conto.cin"
  +
  +
#include "ado.cin"
  +
#define M(x,y) fprintf(o,"%8.4lf %8.4lf M\n",0.+x,0.+y);
  +
#define L(x,y) fprintf(o,"%8.4lf %8.4lf L\n",0.+x,0.+y);
  +
  +
DB Q;
  +
z_type nem(z_type z){ return z*(1.+z*z*(1.+z*Q)); }
  +
z_type nem1(z_type z){ return 1.+z*z*(3.+z*(4.*Q)); } // WARNING: Q is global!
  +
  +
// DB Q=2.;
  +
// z_type nem(z_type z){ return z*(1.+z*z*(1.+z*Q)); }
  +
// z_type nem1(z_type z){ return 1.+z*z*(3.+z*(4.*Q)); } // WARNING: Q is global!
  +
  +
/*
  +
  +
DB K=Q*Q;
  +
DB A[37][19];
  +
int co(){
  +
#include "sunema.txt"
  +
return 0;}
  +
  +
z_type sun(z_type z){ z_type p[37],s; int m,M,n,N;
  +
z_type L=log(-z);
  +
z_type t=1./sqrt(-2.*z);
  +
M=36;
  +
//M=10;
  +
for(m=2;m<M+1;m++){ N=m/2; s=A[m][N]*L; for(n=N-1;n>0;n--) { s+=A[m][n]; s*=L; }
  +
p[m]=A[m][0]+s;
  +
}
  +
s=p[M]*t; for(m=M-1; m>1;m--) { s+=p[m]; s*=t;}
  +
return t*( 1. + t* (-Q + s) );
  +
}
  +
  +
z_type sune(z_type z){ int m,n; DB x,y; z_type s;
  +
//DB R=20.+20.*Q*Q;
  +
DB R=20.+20.*Q*Q;
  +
x=Re(z); if(x<-R) return sun(z);
  +
y=Im(z); if(fabs(y)>R) return sun(z);
  +
n=int(x+R);
  +
s=sun(z-(0.+n));
  +
DO(m,n) s=nem(s);
  +
return s;
  +
}
  +
*/
  +
#include "sune.cin"
  +
  +
DB SUNo=0;
  +
  +
z_type sunem(z_type z){ return sune(z + SUNo);}
  +
  +
int main(){ int Max; int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
  +
// DB rr,ti;
  +
FILE *o;o=fopen("sunemplo4.eps","w");ado(o,420,1020);
  +
fprintf(o,"210 10 translate\n 100 100 scale 2 setlinecap\n");
  +
for(m=-2;m<3;m+=1){ M(m,0)L(m,10)}
  +
for(n=0;n<11;n+=1){ M(-2,n)L(2,n)}
  +
fprintf(o,".008 W 0 0 0 RGB 2 setlinecap S\n");
  +
  +
  +
Q=0; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,402){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W 0 0 0 RGB 1 setlinejoin S\n");
  +
  +
Q=.5; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".01 W .7 0 .6 RGB 1 setlinejoin S\n");
  +
  +
  +
Q=1; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W .8 .2 0 RGB 1 setlinejoin S\n");
  +
  +
Q=2; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W 0 .6 0 RGB 1 setlinejoin S\n");
  +
  +
/*
  +
Q=3; K=Q*Q; SUNo=-2.; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");
  +
  +
Q=4; K=Q*Q; SUNo=-8.; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");
  +
  +
Q=5; K=Q*Q; SUNo=-20.; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");
  +
  +
Q=6; K=Q*Q; SUNo=-30.; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");
  +
  +
Q=7; K=Q*Q; SUNo=-60.; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");
  +
*/
  +
Q=8; K=Q*Q; SUNo=-100.; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".015 W 0 0 .8 RGB 1 setlinejoin S\n");
  +
  +
/*
  +
Q=10; K=Q*Q; SUNo=-150.; co(); printf("Q=%9.4lf\n",Q);
  +
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
  +
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
  +
fprintf(o,".015 W 0 0 .8 RGB 1 setlinejoin S\n");
  +
*/
  +
  +
fprintf(o,"showpage\n%cTrailer",'%'); fclose(o);
  +
  +
system("epstopdf sunemplo4.eps");
  +
system( "open sunemplo4.pdf"); //mac
  +
  +
return 0;
  +
}
  +
</nowiki></nomathjax></poem>
  +
  +
==[[Latex]] generator of curves==
  +
  +
<poem><nomathjax><nowiki>
  +
\documentclass{mcom-l}
  +
% \documentclass[12pt]{article}
  +
\usepackage{graphics}
  +
\paperwidth 408pt
  +
\paperheight 1008pt
  +
\usepackage{geometry}
  +
\usepackage{rotating}
  +
\textwidth 2560pt
  +
\textheight 2260pt
  +
\topmargin -98pt
  +
\oddsidemargin -84pt
  +
\parindent 0pt
  +
\pagestyle{empty}
  +
\newcommand \ing {\includegraphics}
  +
\newcommand \sx {\scalebox}
  +
\newcommand \rot {\begin{rotate}}
  +
\newcommand \ero {\end{rotate}}
  +
\begin{document}
  +
  +
\begin{picture}(620,1020)
  +
\put(4,0){\ing{sunemplo4}}
  +
\put(224,1000){\sx{3.4}{$y$}}
  +
\put(224,900){\sx{3.2}{$9$}}
  +
\put(224,800){\sx{3.2}{$8$}}
  +
\put(224,700){\sx{3.2}{$7$}}
  +
\put(224,600){\sx{3.2}{$6$}}
  +
\put(224,500){\sx{3.2}{$5$}}
  +
\put(224,400){\sx{3.2}{$4$}}
  +
\put(224,300){\sx{3.2}{$3$}}
  +
\put(224,200){\sx{3.2}{$2$}}
  +
\put(225, 99){\sx{3.2}{$1$}}
  +
%\put(420, -7){\sx{3.3}{$0$}}
  +
\put( 88,14){\sx{3.3}{$-1$}}
  +
\put(207,14){\sx{3.3}{$0$}}
  +
\put(308,14){\sx{3.3}{$1$}}
  +
\put(398,14){\sx{3.4}{$x$}}
  +
\put(322,932){\sx{3.4}{\rot{88}$q\!=\!8$\ero}}%
  +
\put(348,834){\sx{3.4}{\rot{87}$q\!=\!2$\ero}}%
  +
\put(361,734){\sx{3.4}{\rot{86}$q\!=\!1$\ero}}%
  +
\put(372,614){\sx{3.4}{\rot{85}$q\!=\!0.5$\ero}}%
  +
\put(392,518){\sx{3.4}{\rot{83}$q\!=\!0$\ero}}%
  +
\end{picture}
  +
\end{document}
  +
</nowiki></nomathjax></poem>
  +
  +
[[Category:Book]]
  +
[[Category:BookPlot]]
  +
[[Category:Exotic iterate]]
  +
[[Category:Explicit plot]]
  +
[[Category:Nemtsov function]]
  +
[[Category:SuNem]]
  +
[[Category:Superfunction]]
  +
[[Category:Superfunctions]]

Latest revision as of 08:53, 1 December 2018

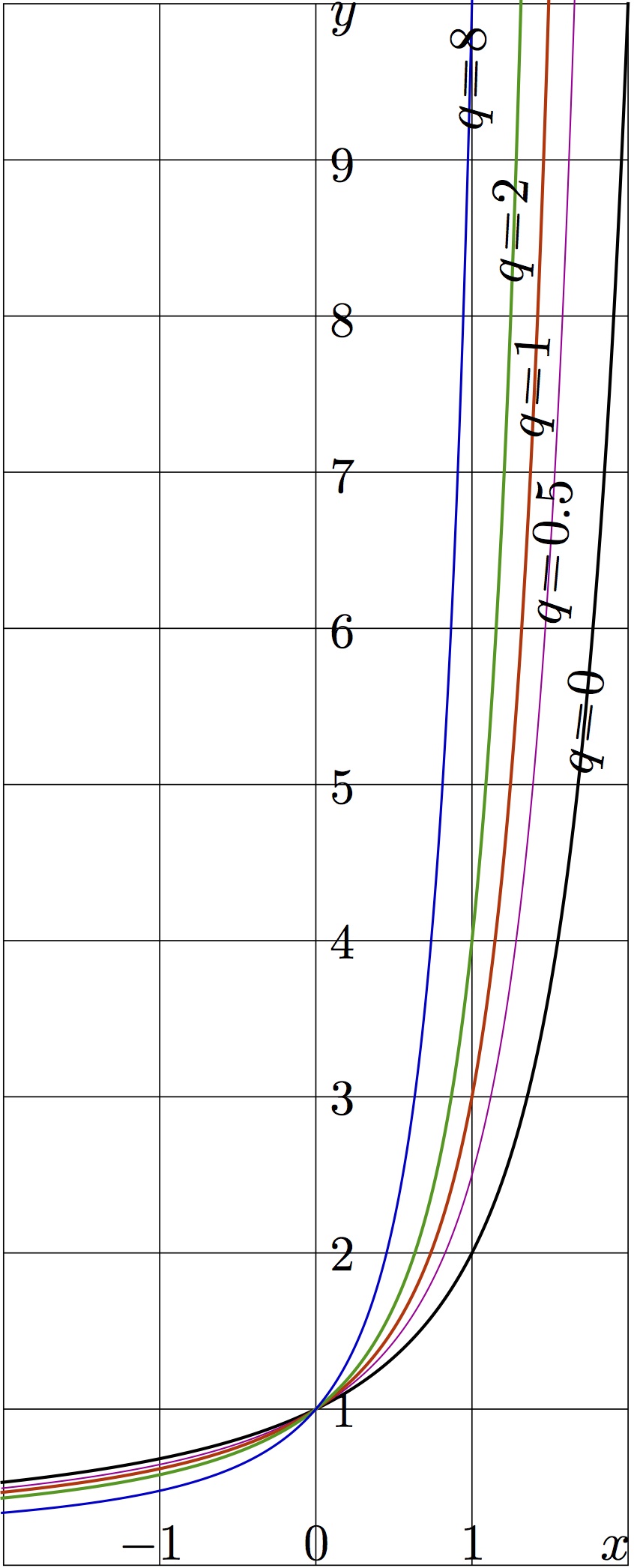

[Explicit plot]] of function SuNem for vationus values of parameter.

$y=\mathrm{SuNem}_q(x)~ ~ $ versus $x$ for

$q\!=\!0$, (black)

$q\!=\!0.5$, (pink)

$q\!=\!1$, (red)

$q\!=\!2$, (green)

$q\!=\!3$, (blue)


Description

References


C++ generator of curves

Files ado.cin, conto.cin, sune.cin, sunema.txt should be loaded in order to compile the C++ code below.


#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#define DB double
#define DO(x,y) for(x=0;x<y;x++)
//using namespace std;
#include <complex>
typedef std::complex<double> z_type;
#define Re(x) x.real()
#define Im(x) x.imag()
#define I z_type(0.,1.)
//#include "conto.cin"

#include "ado.cin"
#define M(x,y) fprintf(o,"%8.4lf %8.4lf M\n",0.+x,0.+y);
#define L(x,y) fprintf(o,"%8.4lf %8.4lf L\n",0.+x,0.+y);

DB Q;
z_type nem(z_type z){ return z*(1.+z*z*(1.+z*Q)); }
z_type nem1(z_type z){ return 1.+z*z*(3.+z*(4.*Q)); } // WARNING: Q is global!

// DB Q=2.;
// z_type nem(z_type z){ return z*(1.+z*z*(1.+z*Q)); }
// z_type nem1(z_type z){ return 1.+z*z*(3.+z*(4.*Q)); } // WARNING: Q is global!

/*

DB K=Q*Q;
DB A[37][19];
int co(){
#include "sunema.txt"
return 0;}

z_type sun(z_type z){ z_type p[37],s; int m,M,n,N;
z_type L=log(-z);
z_type t=1./sqrt(-2.*z);
M=36;
//M=10;
for(m=2;m<M+1;m++){ N=m/2; s=A[m][N]*L; for(n=N-1;n>0;n--) { s+=A[m][n]; s*=L; }
                p[m]=A[m][0]+s;
                }
s=p[M]*t; for(m=M-1; m>1;m--) { s+=p[m]; s*=t;}
        return t*( 1. + t* (-Q + s) );
}

z_type sune(z_type z){ int m,n; DB x,y; z_type s;
//DB R=20.+20.*Q*Q;
DB R=20.+20.*Q*Q;
x=Re(z); if(x<-R) return sun(z);
y=Im(z); if(fabs(y)>R) return sun(z);
n=int(x+R);
s=sun(z-(0.+n));
DO(m,n) s=nem(s);
return s;
}
*/
#include "sune.cin"

DB SUNo=0;

z_type sunem(z_type z){ return sune(z + SUNo);}

int main(){ int Max; int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
// DB rr,ti;
FILE *o;o=fopen("sunemplo4.eps","w");ado(o,420,1020);
fprintf(o,"210 10 translate\n 100 100 scale 2 setlinecap\n");
for(m=-2;m<3;m+=1){ M(m,0)L(m,10)}
for(n=0;n<11;n+=1){ M(-2,n)L(2,n)}
fprintf(o,".008 W 0 0 0 RGB 2 setlinecap S\n");


Q=0; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,402){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W 0 0 0 RGB 1 setlinejoin S\n");

Q=.5; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".01 W .7 0 .6 RGB 1 setlinejoin S\n");


Q=1; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W .8 .2 0 RGB 1 setlinejoin S\n");

Q=2; K=Q*Q; x=0; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W 0 .6 0 RGB 1 setlinejoin S\n");

/*
Q=3; K=Q*Q; SUNo=-2.; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");

Q=4; K=Q*Q; SUNo=-8.; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");

Q=5; K=Q*Q; SUNo=-20.; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");

Q=6; K=Q*Q; SUNo=-30.; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");

Q=7; K=Q*Q; SUNo=-60.; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,40){ x=-2.01+.1*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".02 W 0 0 .8 RGB 1 setlinejoin S\n");
*/
Q=8; K=Q*Q; SUNo=-100.; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".015 W 0 0 .8 RGB 1 setlinejoin S\n");

/*
Q=10; K=Q*Q; SUNo=-150.; co(); printf("Q=%9.4lf\n",Q);
DO(n,50) { y=Re(sunem(0)); SUNo-= y-1.; printf("%19.16lf %19.16lf\n", SUNo,y);} // getchar();
DO(n,400){ x=-2.01+.01*n; y=Re(sunem(x)); if(n==0) M(x,y) else L(x,y); printf("%6.1lf %18.15lf\n", x,y); if(y>10) break;}
fprintf(o,".015 W 0 0 .8 RGB 1 setlinejoin S\n");
*/

fprintf(o,"showpage\n%cTrailer",'%'); fclose(o);

        system("epstopdf sunemplo4.eps");
        system( "open sunemplo4.pdf"); //mac

return 0;
}

Latex generator of curves


\documentclass{mcom-l}
% \documentclass[12pt]{article}
 \usepackage{graphics}
 \paperwidth 408pt
 \paperheight 1008pt
 \usepackage{geometry}
 \usepackage{rotating}
 \textwidth 2560pt
 \textheight 2260pt
 \topmargin -98pt
 \oddsidemargin -84pt
 \parindent 0pt
 \pagestyle{empty}
\newcommand \ing {\includegraphics}
\newcommand \sx {\scalebox}
\newcommand \rot {\begin{rotate}}
\newcommand \ero {\end{rotate}}
\begin{document}

\begin{picture}(620,1020)
\put(4,0){\ing{sunemplo4}}
\put(224,1000){\sx{3.4}{$y$}}
\put(224,900){\sx{3.2}{$9$}}
\put(224,800){\sx{3.2}{$8$}}
\put(224,700){\sx{3.2}{$7$}}
\put(224,600){\sx{3.2}{$6$}}
\put(224,500){\sx{3.2}{$5$}}
\put(224,400){\sx{3.2}{$4$}}
\put(224,300){\sx{3.2}{$3$}}
\put(224,200){\sx{3.2}{$2$}}
\put(225, 99){\sx{3.2}{$1$}}
%\put(420, -7){\sx{3.3}{$0$}}
\put( 88,14){\sx{3.3}{$-1$}}
\put(207,14){\sx{3.3}{$0$}}
\put(308,14){\sx{3.3}{$1$}}
\put(398,14){\sx{3.4}{$x$}}
\put(322,932){\sx{3.4}{\rot{88}$q\!=\!8$\ero}}%
\put(348,834){\sx{3.4}{\rot{87}$q\!=\!2$\ero}}%
\put(361,734){\sx{3.4}{\rot{86}$q\!=\!1$\ero}}%
\put(372,614){\sx{3.4}{\rot{85}$q\!=\!0.5$\ero}}%
\put(392,518){\sx{3.4}{\rot{83}$q\!=\!0$\ero}}%
\end{picture}
\end{document}

File history

Click on a date/time to view the file as it appeared at that time.

Date/TimeThumbnailDimensionsUserComment
current06:14, 1 December 2018Thumbnail for version as of 06:14, 1 December 2018846 × 2,092 (203 KB)Maintenance script (talk | contribs)Importing image file

You cannot overwrite this file.

The following 2 pages use this file:

Metadata

This file contains additional information, probably added from the digital camera or scanner used to create or digitize it.

If the file has been modified from its original state, some details may not fully reflect the modified file.

Retrieved from "https://mizugadro.mydns.jp/t/index.php?title=File:Sunemplo4t.jpg&oldid=21730"
