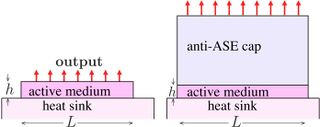

Uncovered active mirror (disk laser) compared to that with undoped cap. The undoped layer prevents the internal reflection from the active medium and allows to make the disk wider, with corresponding increase of maximal power [1][2][3].
