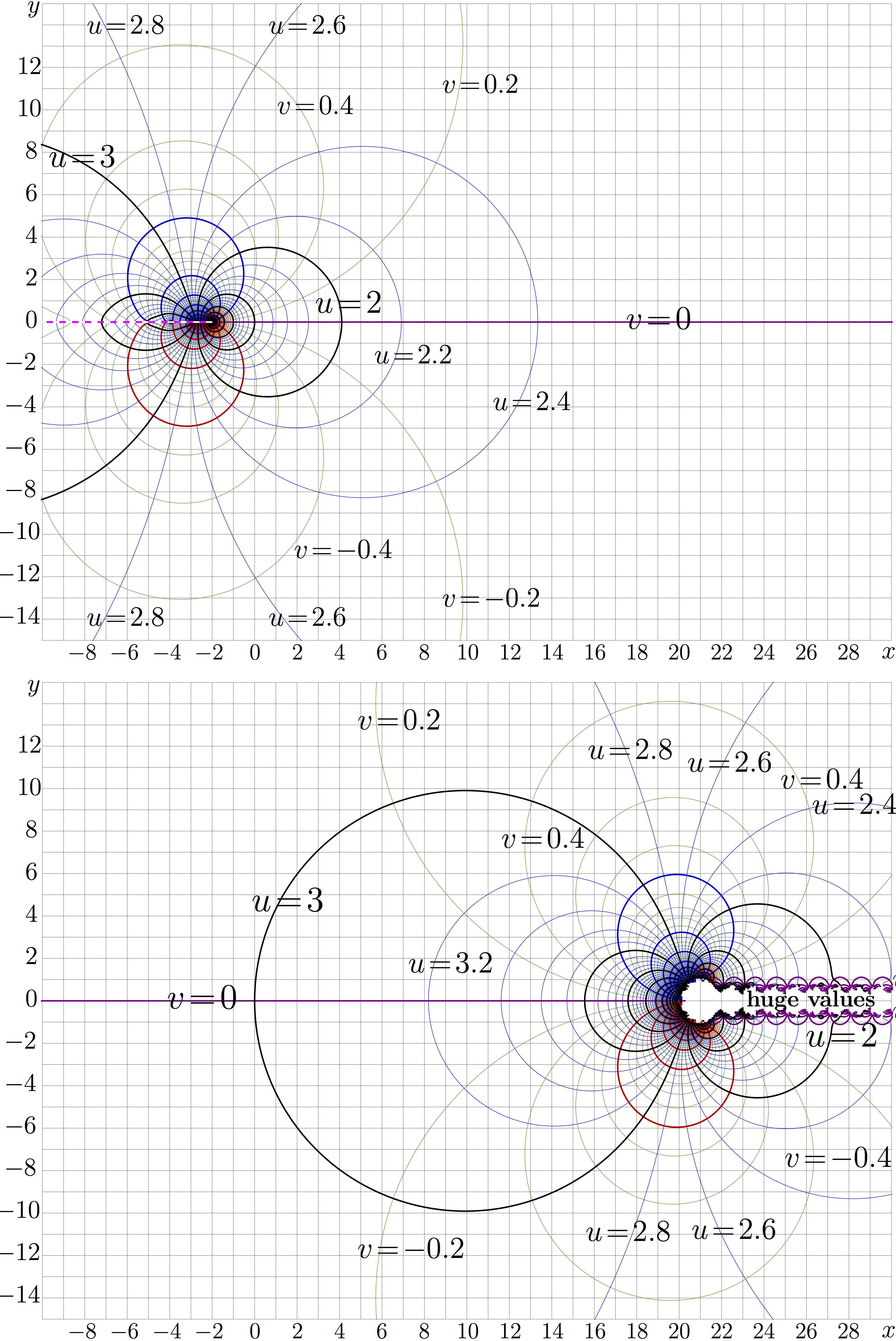

Complex maps of two superexponentials to the Henryk base $\eta\!=\!\exp(1/\mathrm e)\!\approx\! 1.444667861$
$u\!+\!\mathrm i v\!=\!F(x\!+\!\mathrm i y)$
for tetration $F\!=\! \mathrm{tet}_\eta$
and for growing superexponent $F\!=\! \mathrm{SuExp}_{\eta,3}$
Contents
C++ generator of upper map
Fiels ado.cin, conto.cin, e1etf.cin should be loaded
#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#define DB double
#define DO(x,y) for(x=0;x<y;x++)
//using namespace std;
#include <complex>
typedef std::complex<double> z_type;
#define Re(x) x.real()
#define Im(x) x.imag()
#define I z_type(0.,1.)
//#include "e1egf.cin"
#include "e1etf.cin"
#include "conto.cin"
int main(){ int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
int M=501,M1=M+1;
int N=601,N1=N+1;
DB X[M1],Y[N1], g[M1*N1],f[M1*N1], w[M1*N1]; // w is working array.
char v[M1*N1]; // v is working array
//E1E Growung Function
//FILE *o;o=fopen("e1etf.eps","w");ado(o,402,302);
FILE *o;o=fopen("e1etetmap.eps","w");ado(o,402,302);
fprintf(o,"101 151 translate\n 10 10 scale\n");
DO(m,M1) X[m]=-10.+.08*(m-.5);
DO(n,N1) Y[n]=-15.+.05*(n-.5);
for(m=-10;m<31;m++){ //if(m==0){ M(m,-10.2)L(m,10.2)} else
{ M(m,-15)L(m,15) }}
for(n=-15;n<16;n++){ M(-10,n)L(30,n)}
fprintf(o,"2 setlinecap .006 W 0 0 0 RGB S\n");
DO(m,M1)DO(n,N1){g[m*N1+n]=9999; f[m*N1+n]=9999;}
DO(m,M1){x=X[m]; printf("run at x=%6.3f\n",x);
DO(n,N1){y=Y[n]; z=z_type(x,y);
c=E1ETF(z);
// c=E1EGF(z);
// d=z;
// p=abs(c-d)/abs(c+d); p=-log(p)/log(10.);
p=Re(c); q=Im(c);
// if(p>-85 && p<85) g[m*N1+n]=p;
if(p>-33 && p<33 && fabs(p)> 1.e-8 && fabs(p-1.)>1.e-8 &&
q >-33 && q<33 && fabs(q)> 1.e-8) { g[m*N1+n]=p; f[m*N1+n]=q; }
}}
fprintf(o,"1 setlinejoin 1 setlinecap\n");
p=1.8;q=1.;
//#include"plofu.cin"
//p=2;q=1;
for(m=-19;m<19;m++)for(n=2;n<10;n+=2)conto(o,f,w,v,X,Y,M,N, (m+.1*n),-q,q);
fprintf(o,".02 W 0 .6 0 RGB S\n");
for(m=0;m<29;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);
fprintf(o,".02 W .9 0 0 RGB S\n");
for(m=0;m<29;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);
fprintf(o,".02 W 0 0 .9 RGB S\n");
for(m= 1;m<20;m++) conto(o,f,w,v,X,Y,M,N,(0.-m),-p,p);fprintf(o,".07 W .8 0 0 RGB S\n");
for(m= 1;m<20;m++) conto(o,f,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".07 W 0 0 .8 RGB S\n");
conto(o,f,w,v,X,Y,M,N,(0. ),-p,p);fprintf(o,".07 W .5 0 .5 RGB S\n");
for(m=-31;m<32;m++)conto(o,g,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".07 W 0 0 0 RGB S\n");
fprintf(o,"0 setlinecap\n");
// M(-2.,0)L(-10.1,0) fprintf(o,"0 setlinecap .08 W 1 0 1 RGB S\n");
// M(-1.,0)L(-10.1,0) fprintf(o,"0 setlinecap .08 W 1 0 1 RGB S\n");
// M(-1.6,0)L(-10.1,0) fprintf(o,"0 setlinecap .08 W 1 0 1 RGB S\n");
M(-2.,0)L(-10.1,0) fprintf(o,"0 setlinecap .08 W 1 1 1 RGB S\n");
DO(m,15){M(-2.-.6*(m+.5),0)L(-2-.6*(m+1.),0)} fprintf(o,".09 W 1 0 1 RGB S\n");
fprintf(o,"showpage\n%cTrailer",'%'); fclose(o);
system("epstopdf e1etetmap.eps");
system( "open e1etetmap.pdf"); //mac
getchar(); system("killall Preview");// mac
}
C++ generator of lower map
#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#define DB double
#define DO(x,y) for(x=0;x<y;x++)
//using namespace std;
#include <complex>
typedef std::complex<double> z_type;
#define Re(x) x.real()
#define Im(x) x.imag()
#define I z_type(0.,1.)
#include "e1egf.cin"
//#include "e1eti.cin"
#include "conto.cin"
int main(){ int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
int M=501,M1=M+1;
int N=601,N1=N+1;
DB X[M1],Y[N1], g[M1*N1],f[M1*N1], w[M1*N1]; // w is working array.
char v[M1*N1]; // v is working array
//E1E Growung Function
//FILE *o;o=fopen("e1egf.eps","w");ado(o,402,302);
FILE *o;o=fopen("e1esuexpmap.eps","w");ado(o,402,302);
fprintf(o,"101 151 translate\n 10 10 scale\n");
// DO(m,M1) X[m]=-10.+.05*(m-.5);
DO(m,M1) X[m]=-10.+.08*(m-.5);
DO(n,N1) Y[n]=-15.+.05*(n-.5);
for(m=-10;m<31;m++){ //if(m==0){ M(m,-10.2)L(m,10.2)} else
{ M(m,-15)L(m,15) }}
for(n=-15;n<16;n++){ M(-10,n)L(30,n)}
fprintf(o,"2 setlinecap .006 W 0 0 0 RGB S\n");
DO(m,M1)DO(n,N1){g[m*N1+n]=9999; f[m*N1+n]=9999;}
DO(m,M1){x=X[m]; printf("run at x=%6.3f\n",x);
DO(n,N1){y=Y[n]; z=z_type(x,y);
// c=E1ETF(z);
c=E1EGF(z);
// d=z;
// p=abs(c-d)/abs(c+d); p=-log(p)/log(10.);
p=Re(c); q=Im(c);
// if(p>-85 && p<85) g[m*N1+n]=p;
if(p>-33 && p<33 && fabs(p)> 1.e-9 && fabs(p-1.)>1.e-9 &&
q >-33 && q<33 && fabs(q)> 1.e-9) { g[m*N1+n]=p; f[m*N1+n]=q; }
}}
fprintf(o,"1 setlinejoin 1 setlinecap\n");
p=1.;q=.5;
//#include"plofu.cin"
//p=2;q=1;
for(m=-19;m<19;m++)for(n=2;n<10;n+=2)conto(o,f,w,v,X,Y,M,N, (m+.1*n),-q,q);
fprintf(o,".02 W 0 .6 0 RGB S\n");
for(m=0;m<29;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);
fprintf(o,".02 W .9 0 0 RGB S\n");
for(m=0;m<29;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);
fprintf(o,".02 W 0 0 .9 RGB S\n");
for(m= 1;m<20;m++) conto(o,f,w,v,X,Y,M,N,(0.-m),-p,p);fprintf(o,".07 W .8 0 0 RGB S\n");
for(m= 1;m<20;m++) conto(o,f,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".07 W 0 0 .8 RGB S\n");
conto(o,f,w,v,X,Y,M,N,(0. ),-p,p);fprintf(o,".07 W .5 0 .5 RGB S\n");
for(m=-31;m<32;m++)conto(o,g,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".07 W 0 0 0 RGB S\n");
/*
fprintf(o,"0 setlinecap\n");
M(-2,0)L(-8,0) fprintf(o,".08 W 1 1 1 RGB S\n");
DO(m,16){M(-2-.4*(m),0)L(-2-.4*(m+.5),0)} fprintf(o,".09 W 0 0 0 RGB S\n");
*/
fprintf(o,"showpage\n%cTrailer",'%'); fclose(o);
system("epstopdf e1esuexpmap.eps");
system( "open e1esuexpmap.pdf"); //mac
// system( "xpdf e1egf.pdf"); // linux
getchar(); system("killall Preview");// mac
}
